Create and use volume snapshots on Creodias Managed Kubernetes

Kubernetes can create a point-in-time snapshot of a persistent volume and later use that snapshot to restore data into a new PersistentVolumeClaim. Typical examples include:

  • preparing a rollback point before application changes,

  • testing backup and restore procedures,

  • creating a recoverable copy of application data,

  • restoring a previous storage state into a new volume.

Unlike cloning, which creates a new volume directly from another PVC, a snapshot creates an intermediate recovery point that can be reused later.

What We Are Going To Cover

In this article, you will:

  • create a source PersistentVolumeClaim,

  • mount it in a pod and write test data,

  • create a VolumeSnapshot from the source claim,

  • verify that the snapshot is ready,

  • create a new PersistentVolumeClaim from the snapshot,

  • mount the restored volume in a second pod,

  • verify that the restored volume contains the original data.

Prerequisites

1. Hosting account

You need:

  1. A running Managed Kubernetes cluster

You need an existing Creodias Managed Kubernetes cluster and a working kubectl configuration for that cluster. See How to create a Kubernetes cluster using the Creodias Managed Kubernetes launcher GUI

  1. At least one schedulable worker node

At least one worker node should be in the Ready state before you continue. To check the available nodes, run:

kubectl get nodes -o wide

Here is what it might look like:

../_images/kubectl_showing_active_pods.png

A pod used to verify volume snapshots cannot run if the cluster contains only a control-plane node that is marked to reject normal workload pods.

  1. Basic knowledge of Kubernetes storage

It is helpful to understand the difference between:

  • PersistentVolume (PV), which represents storage available to the cluster,

  • PersistentVolumeClaim (PVC), which is a request for storage made by a workload,

  • VolumeSnapshot, which captures a point-in-time state of a volume.

  1. Available storage classes

To see which storage classes are available in your current region, run:

kubectl get sc

The result may look like this:

../_images/available_storage_classes_for_cinder.png

The two available Cinder-backed storage classes in this example are:

  • cinder-ssd – provisions volumes on SSD-backed storage. Better for workloads that perform frequent reads and writes or need lower latency.

  • cinder-hdd – provisions volumes on HDD-backed storage. Better suited to less performance-sensitive workloads where capacity may be more important than speed.

In this cluster, cinder-ssd is marked as the default storage class, which means it will be used automatically unless another storage class is specified explicitly in the PVC manifest.

The actual choice of classes may differ from one cloud to another, so check the availability and use the right one for your purposes.

Create the source PersistentVolumeClaim

Save the following file as snapshot-source-pvc.yaml:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: snapshot-source-pvc
spec:
  storageClassName: cinder-ssd
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 5Gi

Apply the manifest:

kubectl apply -f snapshot-source-pvc.yaml

Write data to the source volume

Save the following file as snapshot-writer-pod.yaml:

apiVersion: v1
kind: Pod
metadata:
  name: snapshot-writer
spec:
  containers:
  - name: app
    image: busybox
    command: ["sh", "-c", "echo hello-from-snapshot-source > /data/file.txt; sleep 3600"]
    volumeMounts:
    - mountPath: /data
      name: data
  volumes:
  - name: data
    persistentVolumeClaim:
      claimName: snapshot-source-pvc

Apply the manifest:

kubectl apply -f snapshot-writer-pod.yaml
kubectl wait --for=condition=Ready pod/snapshot-writer --timeout=120s

To verify that the file was written successfully, run:

kubectl exec --tty --stdin snapshot-writer -- /bin/sh
cat /data/file.txt

You should see:

/ # cat /data/file.txt
hello-from-snapshot-source
/ #

To leave the shell prompt, type exit and press Enter.

Delete the writer pod

Before creating the snapshot, delete the writer pod so that the source volume is no longer mounted by the pod.

Run:

kubectl delete pod snapshot-writer

The result is:

pod "snapshot-writer" deleted

This step is necessary because the cloud storage backend (Cinder) requires the source volume to be in the available state before a snapshot can be created.

Create a VolumeSnapshot

Save the following file as volume-snapshot.yaml:

apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
  name: snapshot-copy
spec:
  volumeSnapshotClassName: cinder-csi-delete
  source:
    persistentVolumeClaimName: snapshot-source-pvc

The value cinder-csi-delete means that when this VolumeSnapshot object is deleted, the corresponding backend snapshot is also removed.

Apply the manifest:

kubectl apply -f volume-snapshot.yaml

Verify that the snapshot is ready

To verify that the snapshot was created successfully, run:

kubectl get volumesnapshot
kubectl describe volumesnapshot snapshot-copy

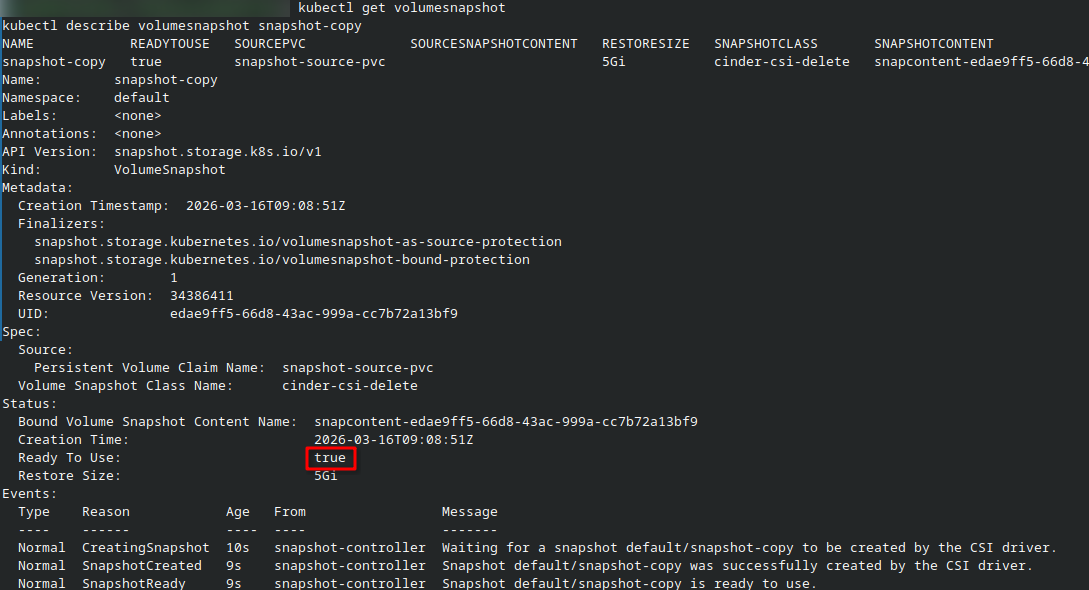

The snapshot should eventually show READY TO USE as true in the output.

../_images/snapshot_created_and_ready.png

Create a new PVC from the snapshot

Save the following file as snapshot-restored-pvc.yaml:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: snapshot-restored-pvc
spec:
  storageClassName: cinder-ssd
  accessModes:
    - ReadWriteOnce
  dataSource:
    name: snapshot-copy
    kind: VolumeSnapshot
    apiGroup: snapshot.storage.k8s.io
  resources:
    requests:
      storage: 5Gi

Apply the manifest:

kubectl apply -f snapshot-restored-pvc.yaml

Verify that the restored PVC was created

Run:

kubectl get pvc
kubectl describe pvc snapshot-restored-pvc

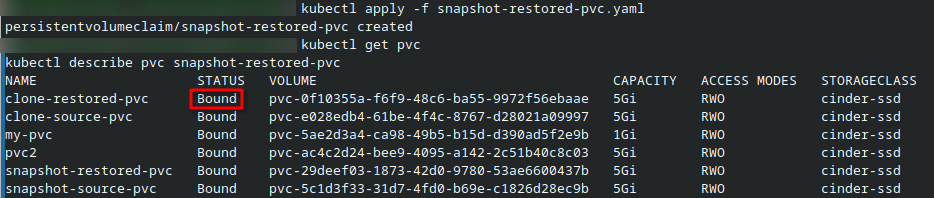

The restored claim should eventually show status Bound, which means the new volume has been created successfully from the snapshot.

../_images/snapshot_restored_pvc_bound.png

Mount the restored volume in a second pod

Save the following file as snapshot-reader-pod.yaml:

apiVersion: v1
kind: Pod
metadata:
  name: snapshot-reader
spec:
  containers:
  - name: app
    image: busybox
    command: ["sh", "-c", "cat /data/file.txt; sleep 3600"]
    volumeMounts:
    - mountPath: /data
      name: data
  volumes:
  - name: data
    persistentVolumeClaim:
      claimName: snapshot-restored-pvc

Apply the manifest:

kubectl apply -f snapshot-reader-pod.yaml
kubectl wait --for=condition=Ready pod/snapshot-reader --timeout=120s

Verify the restored data

Check the pod log:

kubectl logs snapshot-reader

If the pod starts successfully, you should see:

hello-from-snapshot-source

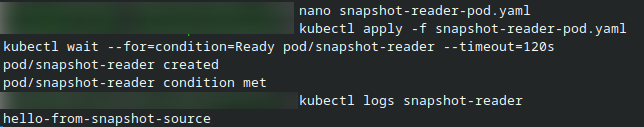

../_images/verify_the_restored_data.png

This confirms that the snapshot captured the original data and that the restored PVC contains that data.

A volume snapshot captures a point-in-time state

Volume snapshots preserve storage state at a specific point in time, but they are not the same as shared access or live synchronization.

This means:

  • a snapshot captures the volume state only at the moment it is created,

  • later changes to the source volume do not automatically update the snapshot,

  • restoring from a snapshot creates a separate volume.

What to do next

You have now created a volume snapshot and restored a new PersistentVolumeClaim from it.

As a next step, you can compare this approach with:

Clean up the resources created in this article

If you no longer need the test resources created in this article, delete the restored pod, the snapshot, and both PersistentVolumeClaims.

Run:

kubectl delete pod snapshot-reader snapshot-writer --ignore-not-found
kubectl delete volumesnapshot snapshot-copy --ignore-not-found
kubectl delete pvc snapshot-restored-pvc snapshot-source-pvc --ignore-not-found

In the normal workflow, the writer pod was already deleted earlier in the procedure before the snapshot was created. The command above includes it as well so that the cleanup works even if you recreated it manually during testing.

The PersistentVolumes used in this workflow were created dynamically from the PersistentVolumeClaims. Because the associated storage class uses the Delete reclaim policy, deleting the PVCs also triggers removal of the dynamically provisioned volumes created for this test.

To verify the cleanup status, run:

kubectl get pod
kubectl get volumesnapshot
kubectl get pvc
kubectl get pv

The pods snapshot-reader and snapshot-writer, the snapshot snapshot-copy, and the claims snapshot-source-pvc and snapshot-restored-pvc should disappear immediately.

The corresponding dynamically created PersistentVolumes may remain temporarily in the Released state while backend cleanup is still in progress. After the cleanup finishes, they should also disappear from the output.
